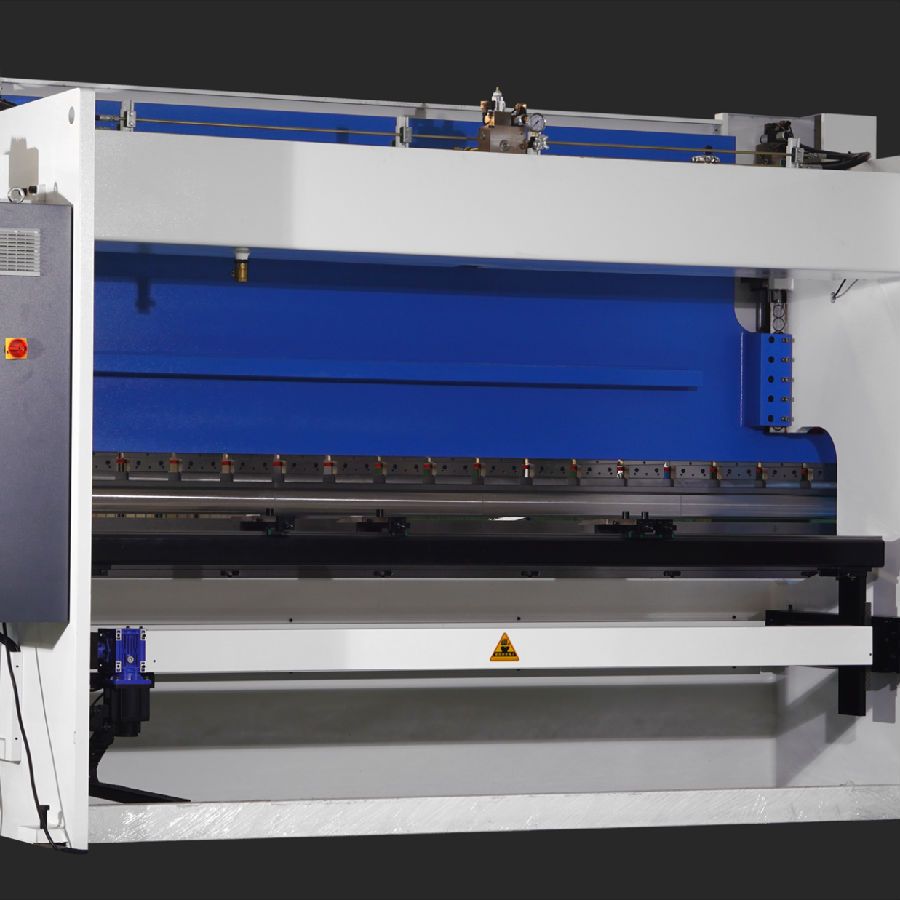

EHP ELECTRO HYDRAULIC CNC PRESS BRAKE WITH CT8 4+1 AXIS

I. Main Features:

· Streamlined design originated from europe, heat treatment of machine frame, high rigidity workbench, optional mechanical compensation device, to ensure the precision of bending

· Hydraulic synchronous control and CNC programmable controller guarantee precise repeatability and easy use.

· Integrated hydraulic system ( Germany Bosch Rexroth ) can be automatically switched to slow bending status.

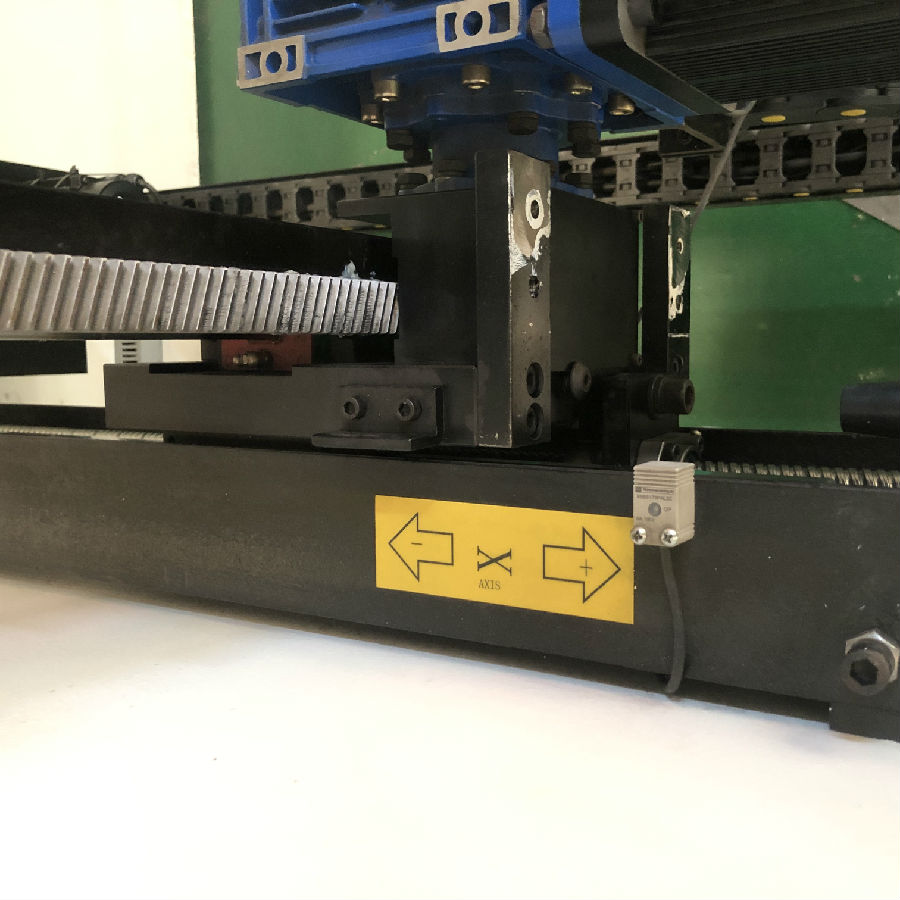

· X ,Y-axis realize accurate positioning function through CNC CybTouch 8 controller programming and servo motor.

· Latest servo response hydraulic control technology, the machine tool is more stable and reliable.

· Optimal parameter ratio, best core configuration guarantee stable performance and more convenient for operation

· PBT series machine is equipped with single-axis backgauge system, single-axis bending angle system and V-axis compensation function combining with customized dies, any type irregular workpieces can be done

II. Main Configuration

· Touch 8 controller

· Controller controls and adjusts Y-axis and X-axis

· Servo drive and control positioning of X-axis and Y-axis

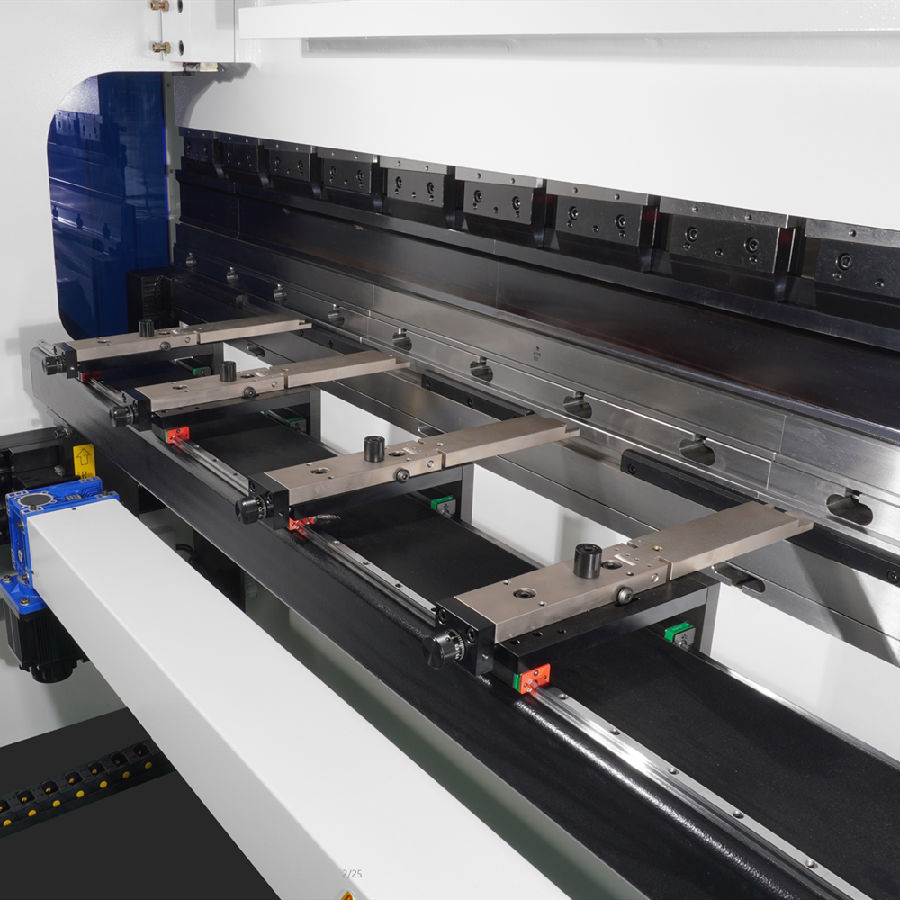

· Adopting HIWIN ball screw and linear guide rail, accuracy 0.05mm

· Front supporter bracket

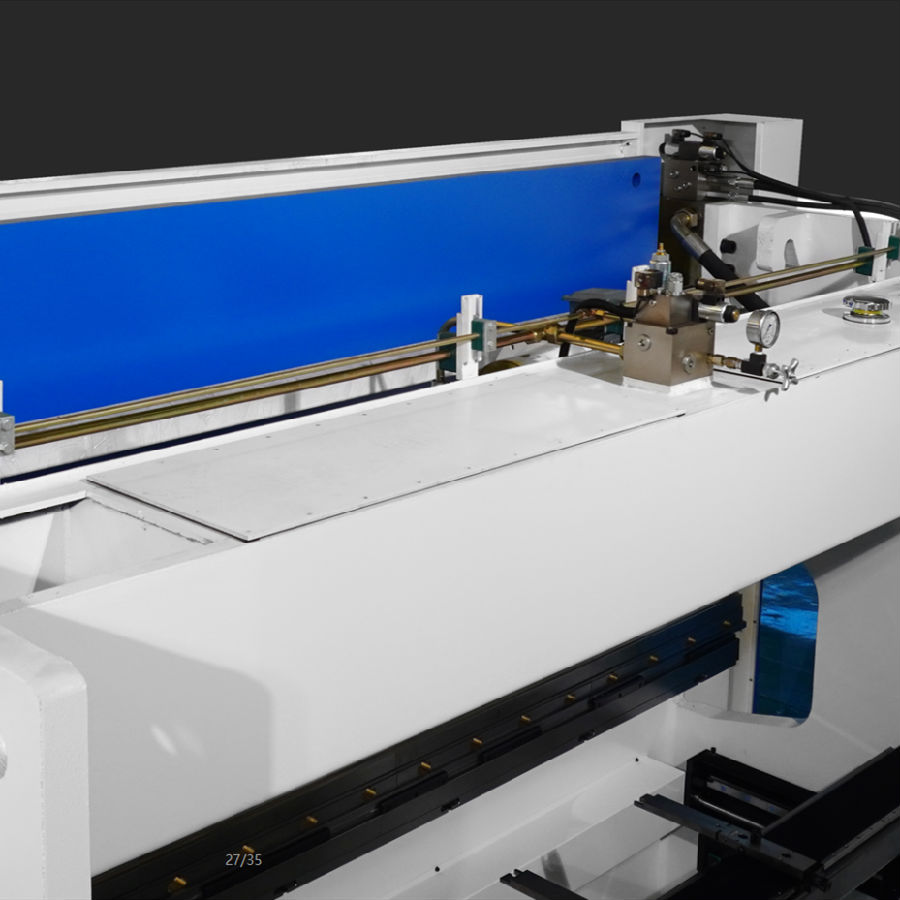

· Germany Bosch Rexroth hydraulic valve block

· Germany EMB oil tube connector

· Germany Siemens main motor

· France Schneider electrics

· Hydraulic & electrical overload protectionTop and bottom dies (86 °, R0.6mm, material: 42CrMo HRC ±47 °)

· Ajdust quality stop finger

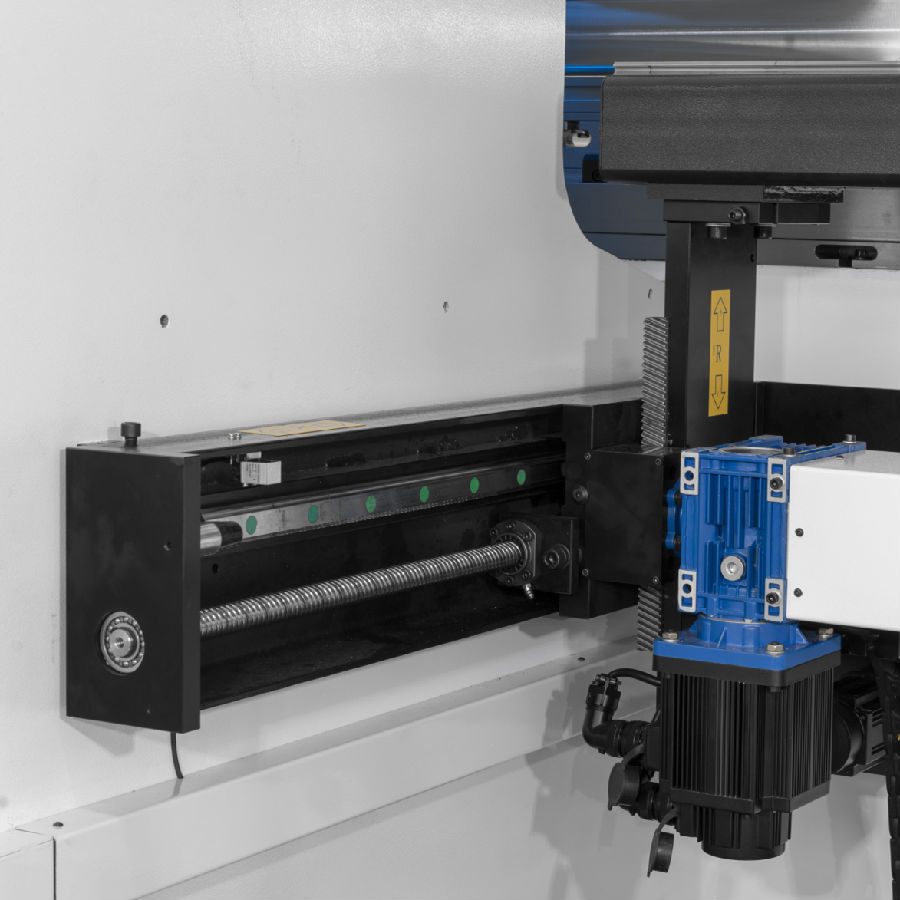

· Increase axis support 4+1 axis (R axis )

· III. Safety Standard:

1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009

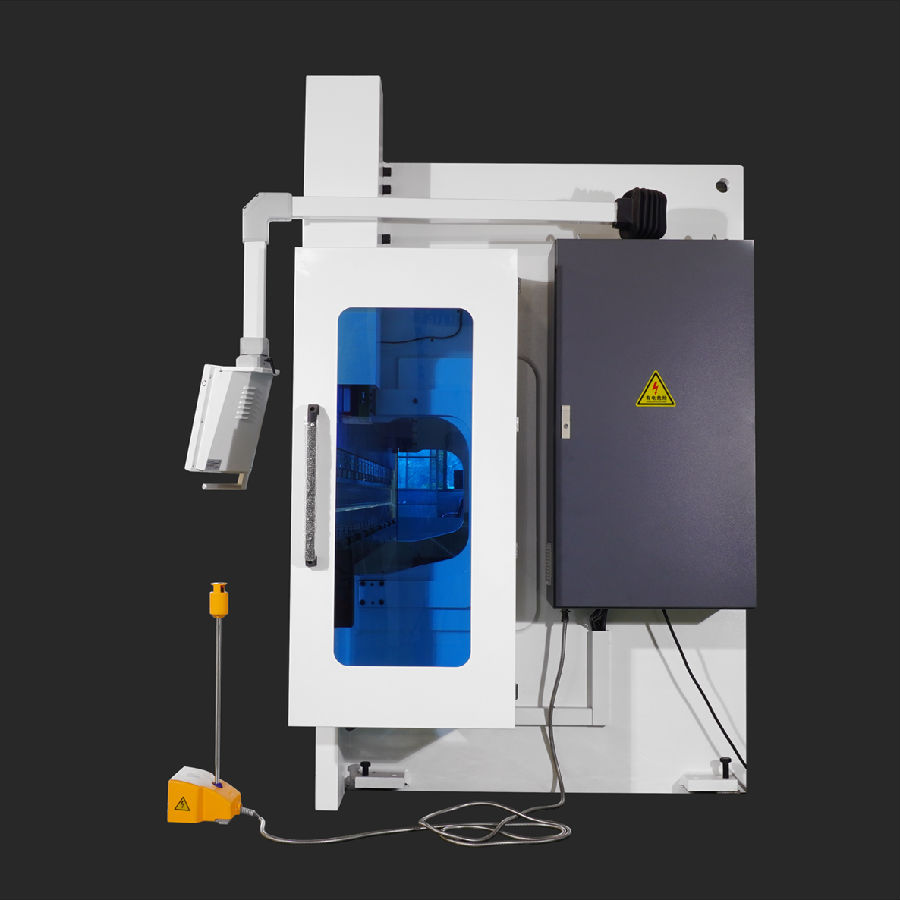

· Front Finger protection ( safety light curtain )

· South Korea KACON pedal switch ( safety grade 4 )

· Back metal safeguard, CE standard

· Safety relay monitor pedal switch, safety protection

· Safety standard ( 2006／42／EC）

VI. CybTouch 8 controller

*   7” color graphic CRT screen, with LED backlight control.

*Intuitive user-friendly interface.

*Simple pages, clear display, large keys.

*Large, vivid and high-contJHLt fully touchscreen.

*Complete programming for efficient mass-production with multiple bends.

*Easy single bends with EasyBend page.

*On-line help and interactive warning pop-ups.

*Comfortable wireless data backup and software updating using PC or Notebook.

*Large variety of languages available.
