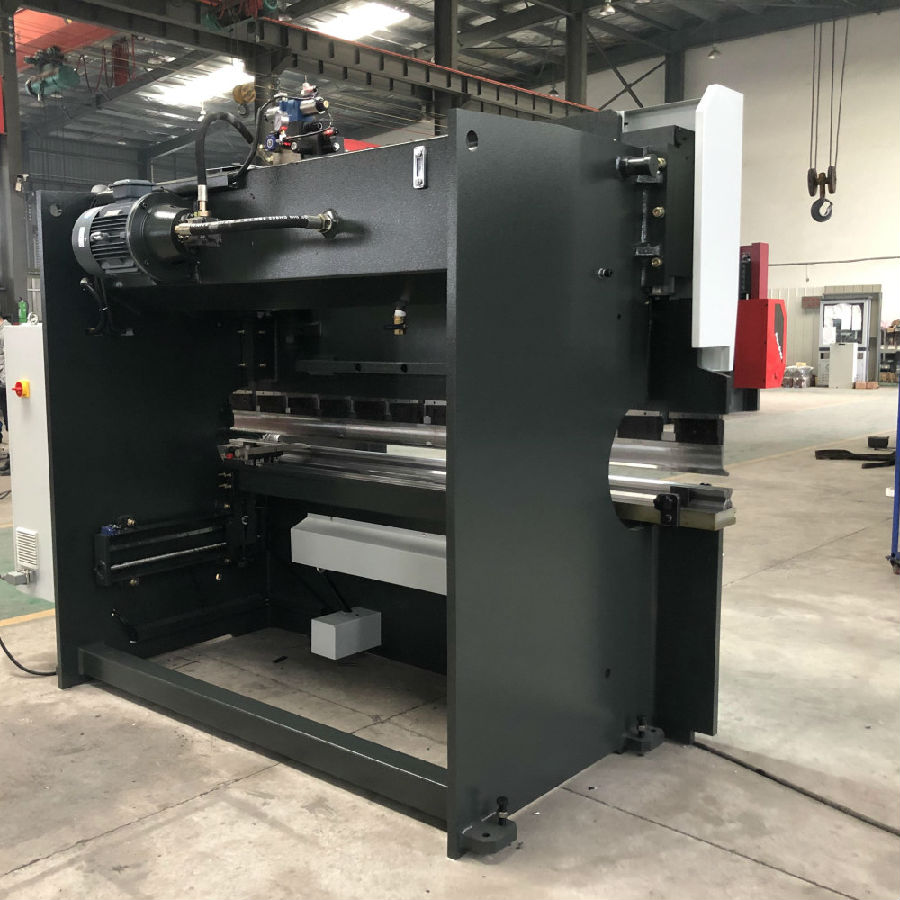

CNC HYDRAULIC TORSION BAR TYPE PRESS BRAKE (E300P)

I. Main Features

· Streamlined design originated from europe, heat treatment of machine frame, high rigidity workbench, optional mechanical compensation device, to ensure the precision of bending

· Hydraulic synchronous control and Estun CNC programmable controller guarantee precise repeatability and easy use.

· Integrated hydraulic system (german quality )  can be automatically switched to slow bending status.

· X ,Y-axis realize accurate positioning function through CNC E300P controller programming and servo motor.

· Latest servo response hydraulic control technology, the machine tool is more stable and reliable.

· Optimal parameter ratio, best core configuration guarantee stable performance and more convenient for operation

· HTP series machine is equipped with single-axis backgauge system, single-axis bending angle system and V-axis compensation function combining with customized dies, any type irregular workpieces can be done

II. Main Configuration

· E300P controller

· Controller controls and adjusts Y-axis and X-axis

· Servo drive and control positioning of X-axis and Y-axis

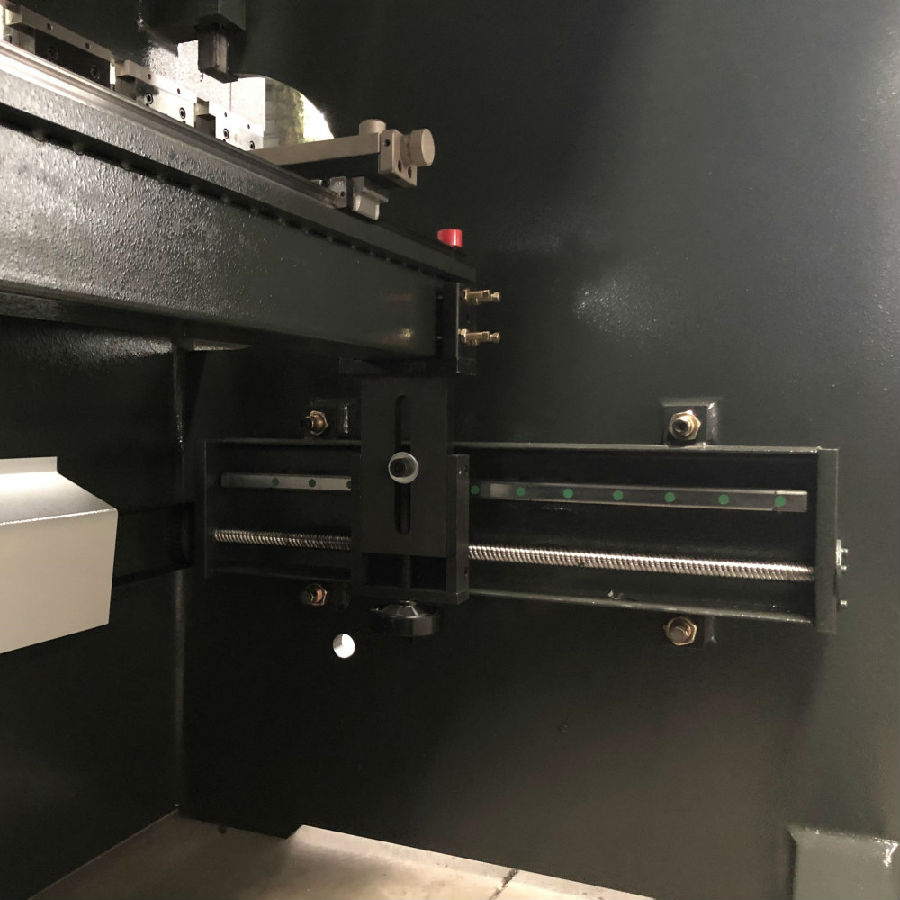

· Adopting HIWIN ball screw and linear guide rail, accuracy 0.05mm

· Front supporter bracket

· German quality hydraulic valve block

· German quality  oil tube connector

· Germany Siemens main motor

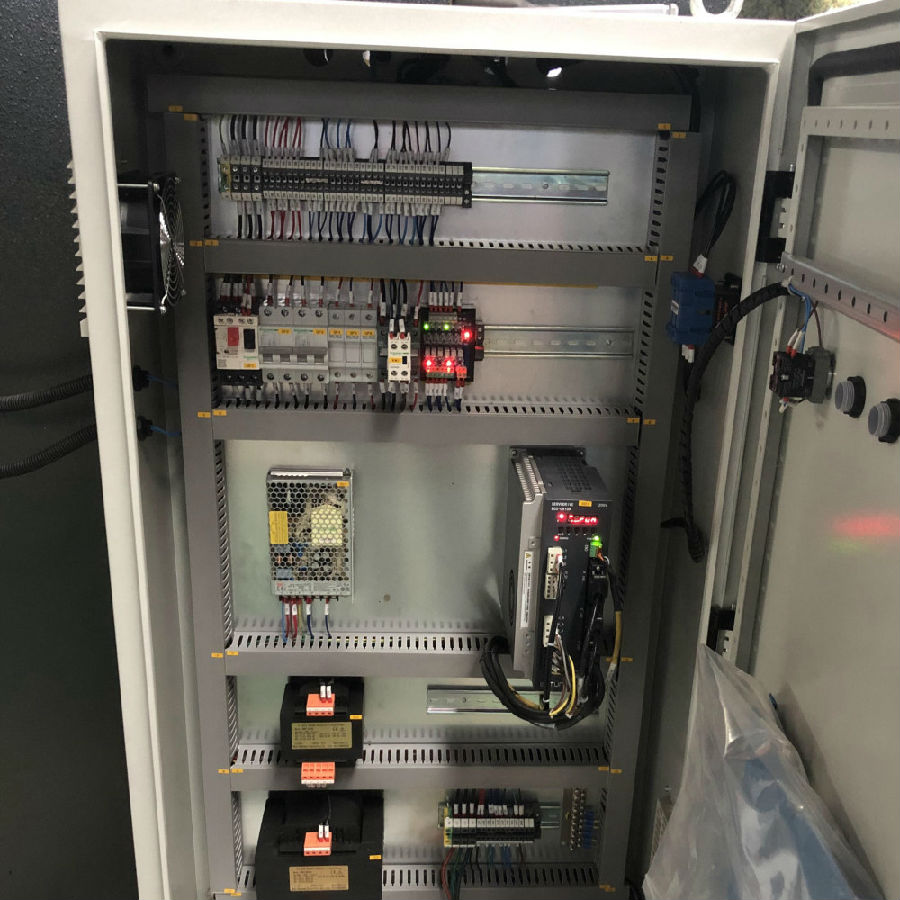

· France Schneider electrics

· Hydraulic & electrical overload protection

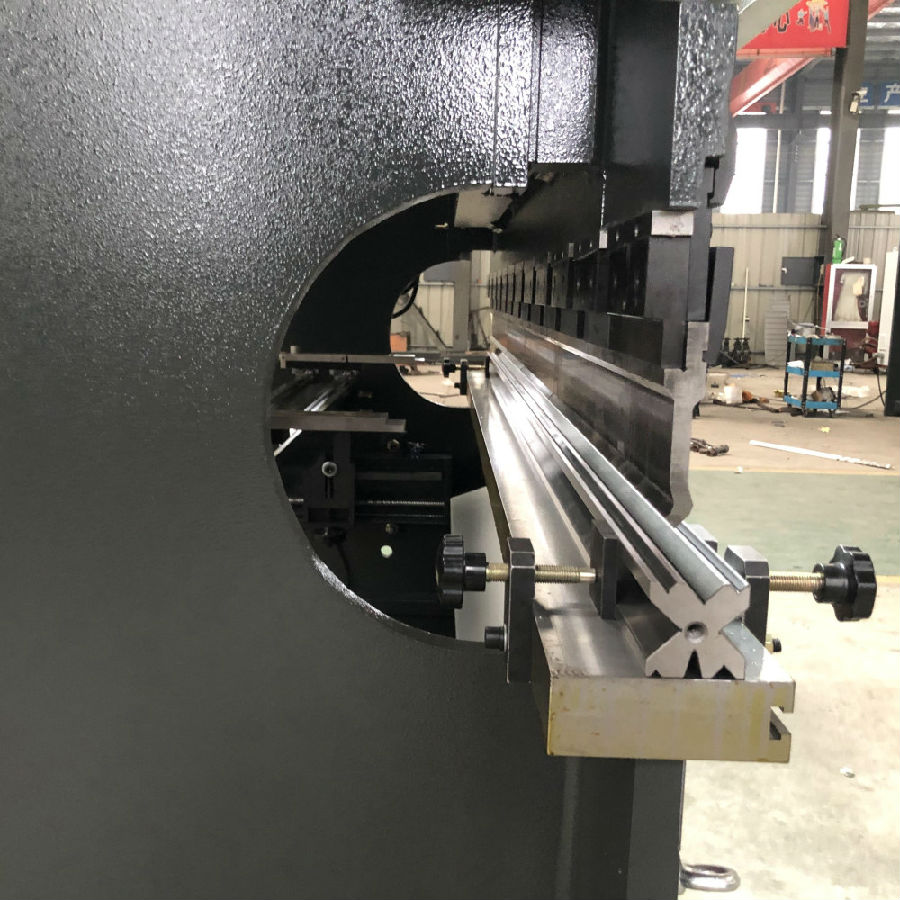

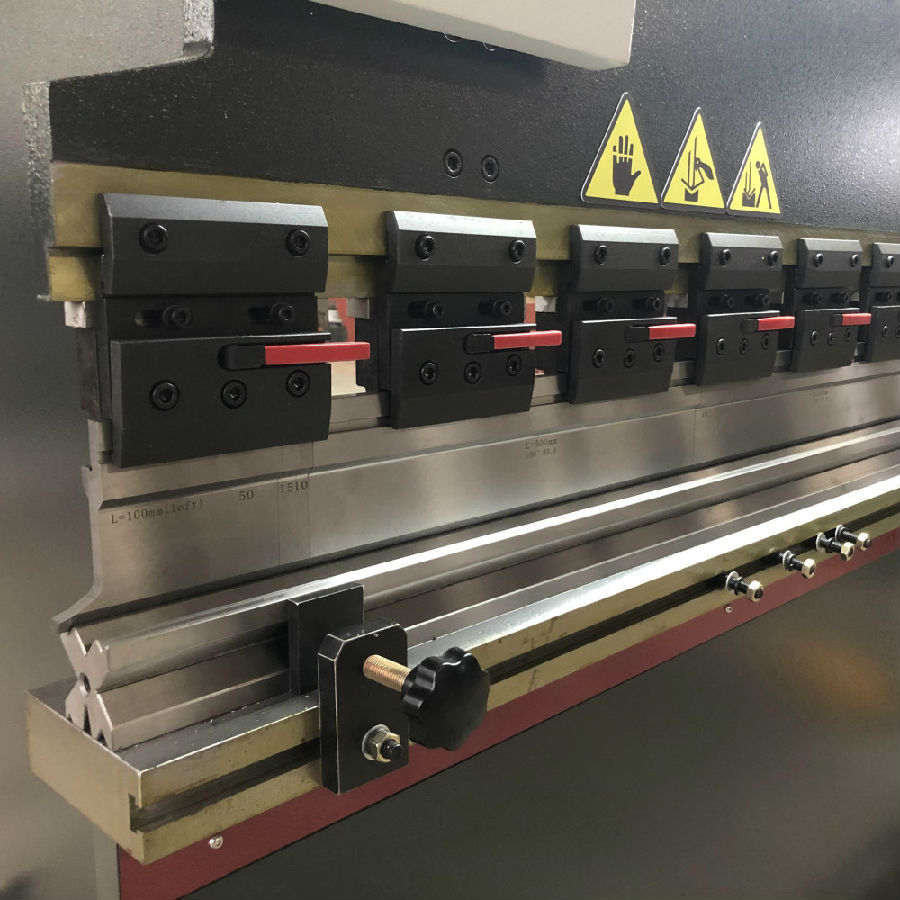

· Top and bottom dies (86 °, R0.6mm, material: 42CrMo HRC ±47 °)

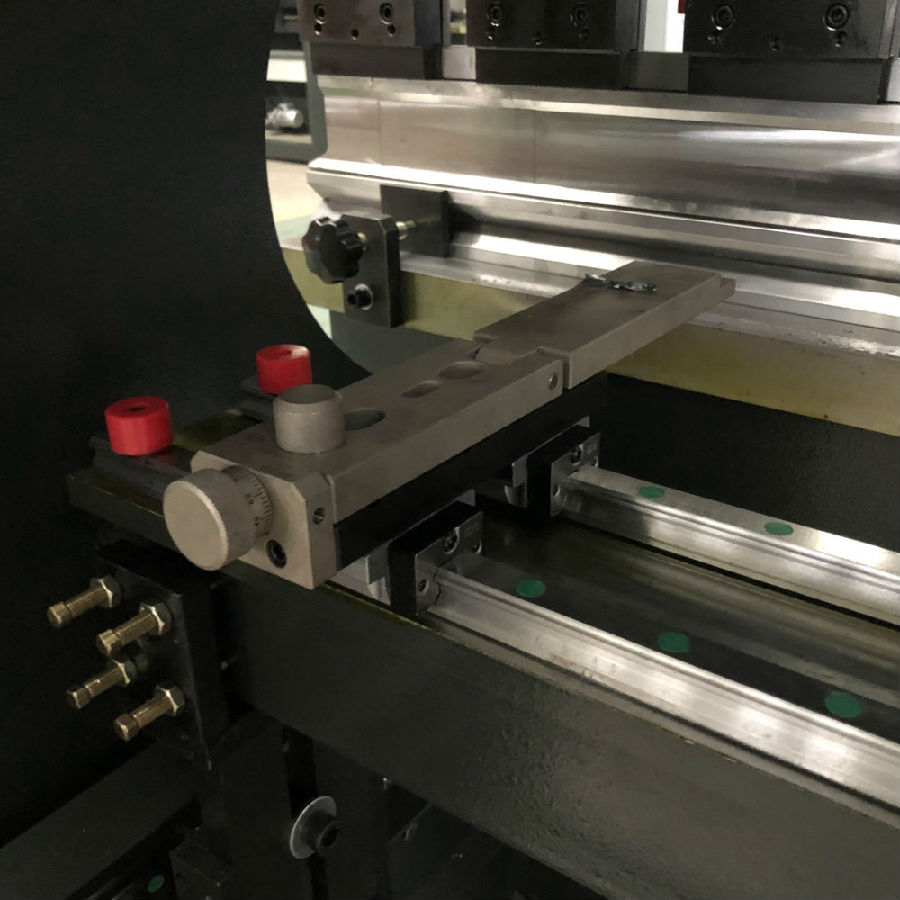

Ajdust quality stop finger

Angle bending program set
