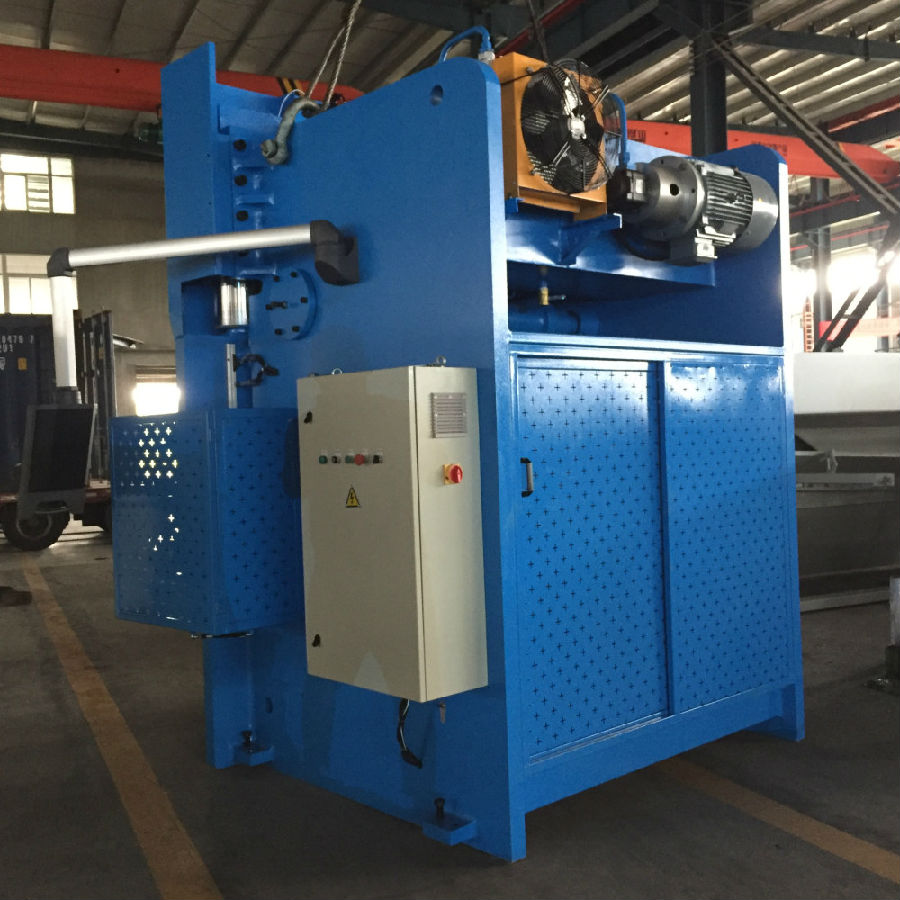

HTP MODEL HYDRAULIC PRESS BRAKE WITH DA41S CNC SYSTEM 250T2500 MODEL

CNC HYDRAULIC TORSION BAR TYPE PRESS BRAKE(DELEM DA41S)

I. Main Features

· Streamlined design originated from europe, heat treatment of machine frame, high rigidity workbench, optional mechanical compensation device, to ensure the precision of bending

· Hydraulic synchronous control and Delem CNC programmable controller guarantee precise repeatability and easy use.

· Integrated hydraulic system ( (german quality ) can be automatically switched to slow bending status.

· X ,Y-axis realize accurate positioning function through CNC DA41S controller programming and servo motor.

· Latest servo response hydraulic control technology, the machine tool is more stable and reliable.

· Optimal parameter ratio, best core configuration guarantee stable performance and more convenient for operation

· HTP series machine is equipped with single-axis backgauge system, single-axis bending angle system and V-axis compensation function combining with customized dies, any type irregular workpieces can be done

II. Main Configuration

· Holland DELEM DA41S controller

· Controller controls and adjusts Y-axis and X-axis

· Servo drive and control positioning of X-axis and Y-axis

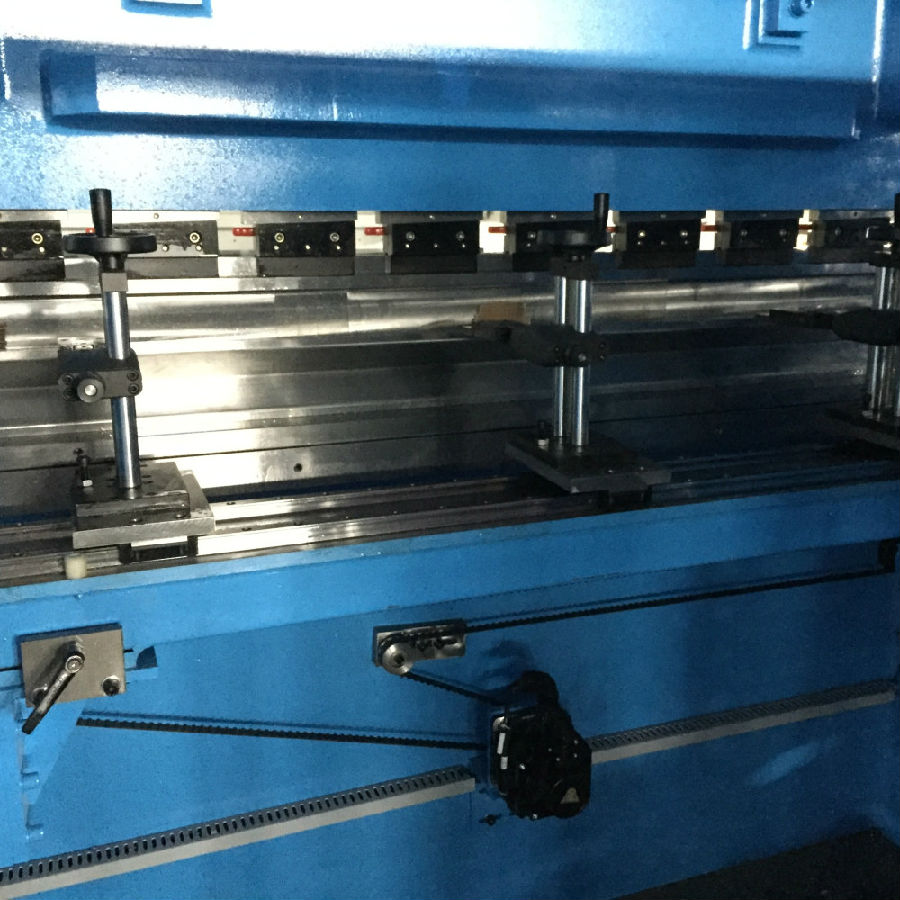

· Adopting HIWIN ball screw and linear guide rail, accuracy 0.05mm

· Front supporter bracket

· German quality hydraulic valve block

· German quality oil tube connector

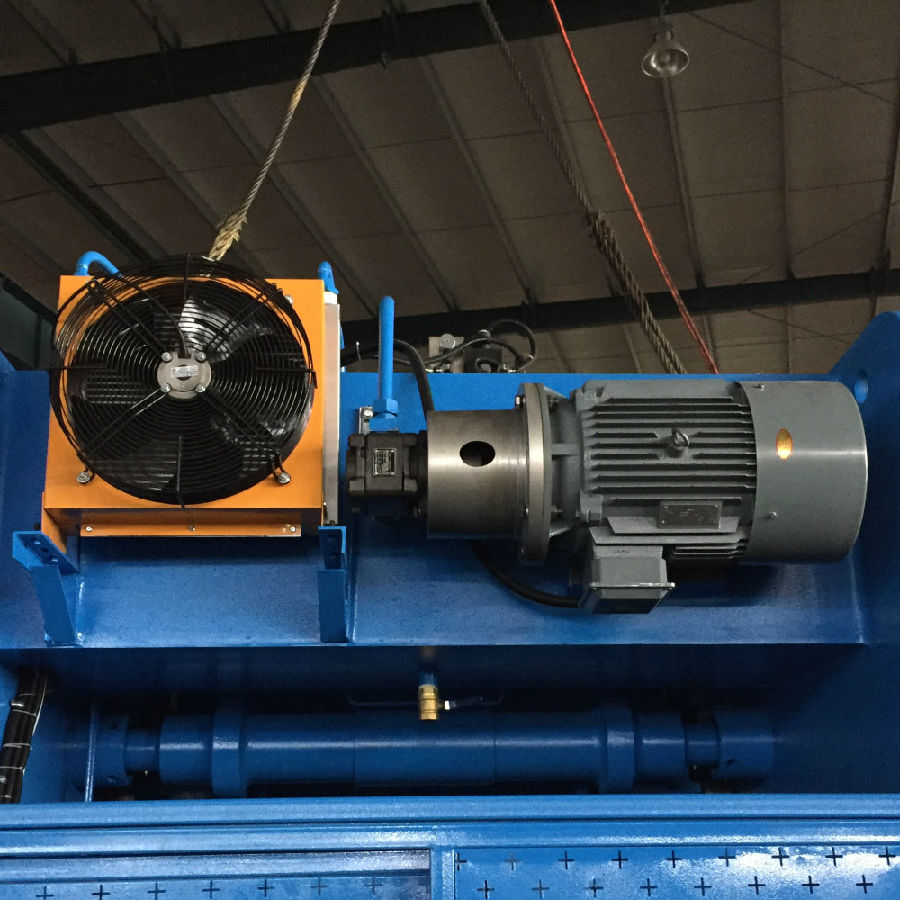

· Germany Siemens main motor

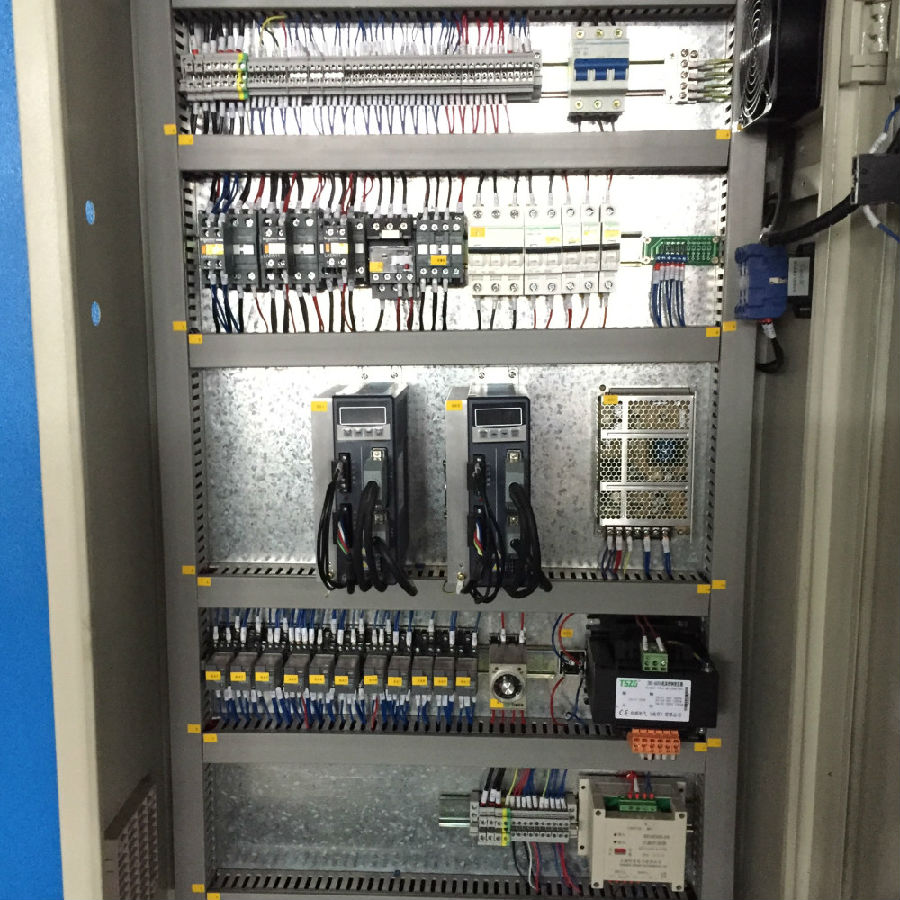

· France Schneider electrics

· Hydraulic & electrical overload protection

· Top and bottom dies (86 °, R0.6mm, material: 42CrMo HRC ±47 °)

· Ajdust quality stop finger

III. Safety Standard

1.EN 12622:2009 + A1:2013          2.EN ISO 12100:2010      3.EN 60204-1:2006+A1:2009

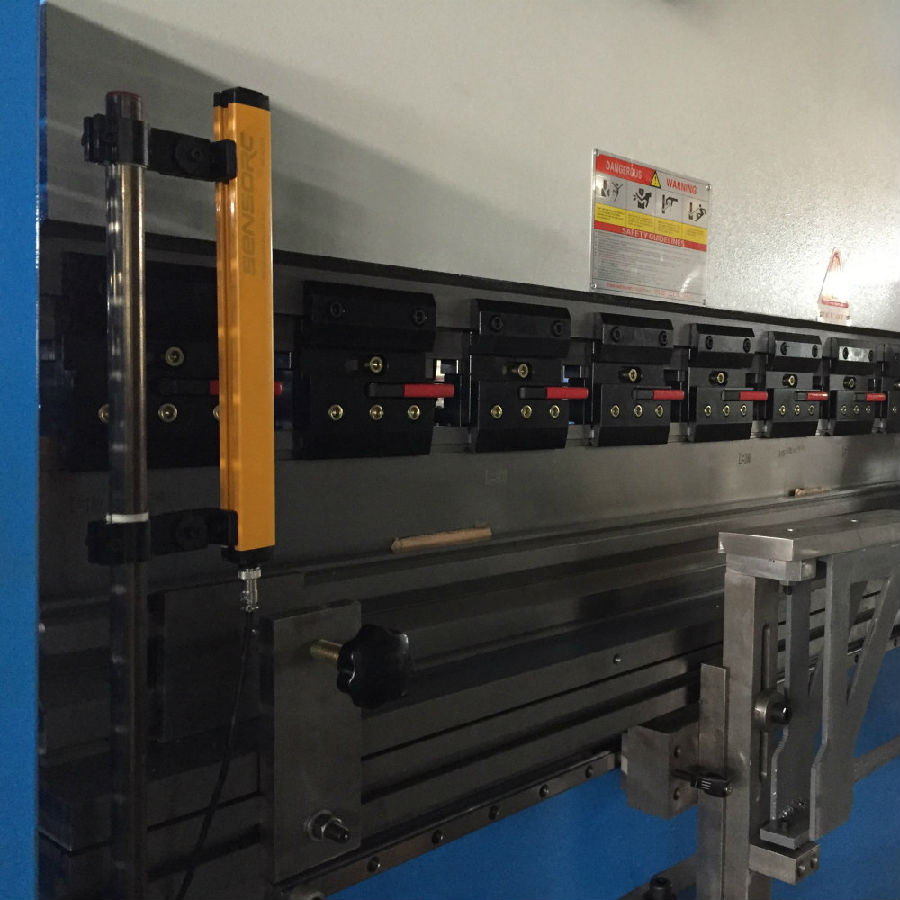

· Front Finger protection ( safety light curtain )

· South Korea KACON pedal switch ( safety grade 4 )

· Back metal safeguard, CE standard

· Safety relay monitor pedal switch, safety protection

· Safety standard ( 2006／42／EC）

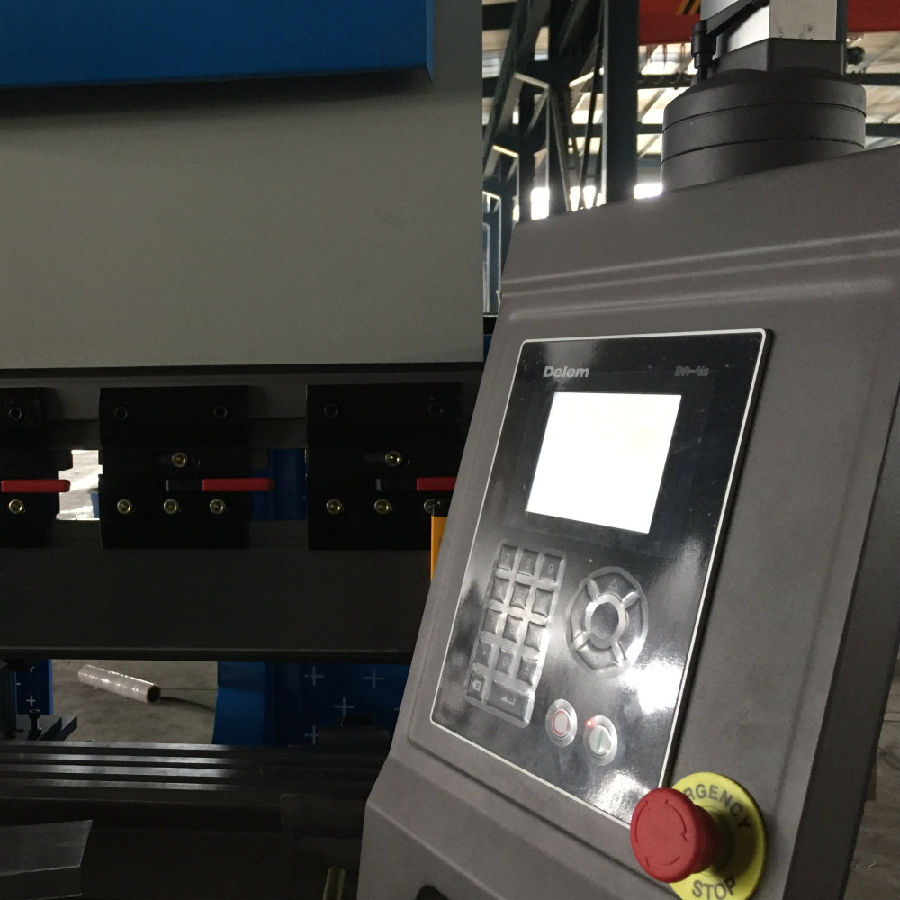

VI. Delem DA41S CNC controller

· High-definition LCD display

· Control slider stop position

· Backgauge control

· Angle programming

· Setting die parameters

· Material-escaping control function

· 100 programs, 25 process steps per program

· Servo motor control, servo drive control

· Die library

· mm / inch

· Chinese / English
