HTP MODEL HYDRAULIC PRESS BRAKE WITH E200P CNC SYSTEM

CNC HYDRAULIC TORSION BAR TYPE PRESS BRAKE (E200P)

I. Main Features

· Streamlined design originated from europe, heat treatment of machine frame, high rigidity workbench, optional mechanical compensation device, to ensure the precision of bending

· Hydraulic synchronous control and Estun NC programmable controller guarantee precise repeatability and easy use.

· Integrated hydraulic system (german quality )  can be automatically switched to slow bending status.

· X ,Y-axis realize accurate positioning function through NC E200P controller programming and servo motor.

· Latest servo response hydraulic control technology, the machine tool is more stable and reliable.

· Optimal parameter ratio, best core configuration guarantee stable performance and more convenient for operation

· HTP series machine is equipped with single-axis backgauge system, single-axis bending angle system and V-axis compensation function combining with customized dies, any type irregular workpieces can be done

II. Main Configuration

· Estun E200P controller

· Controller controls and adjusts Y-axis and X-axis

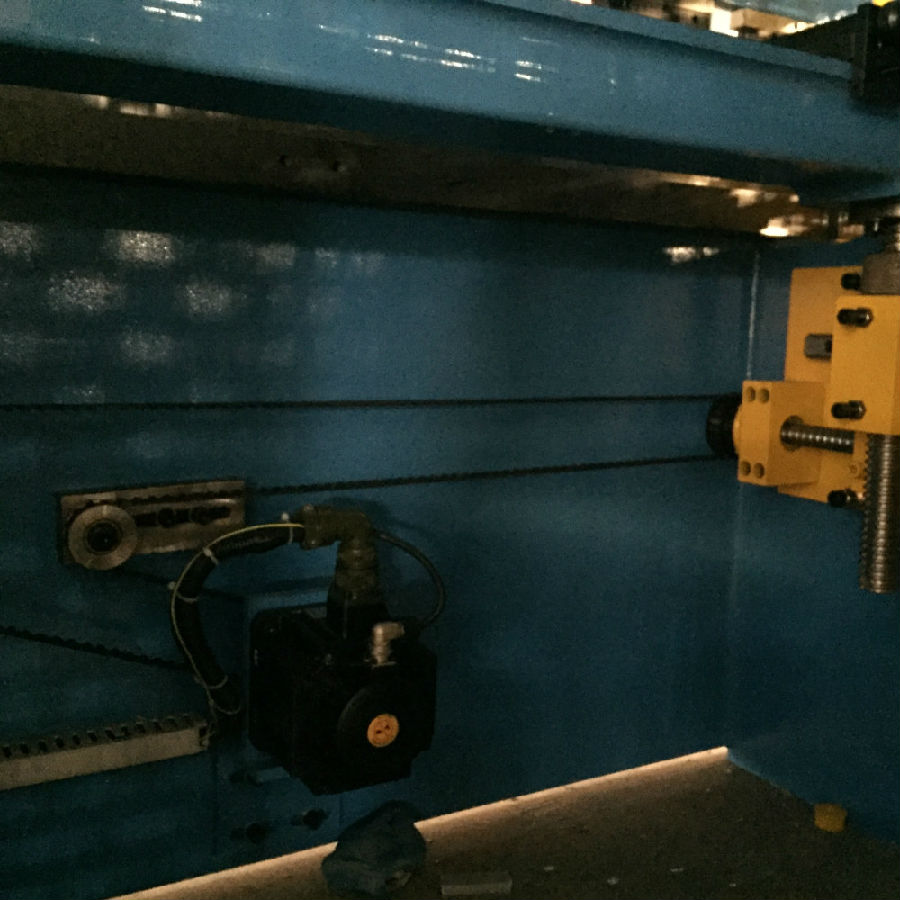

· Servo drive and control positioning of X-axis and Y-axis

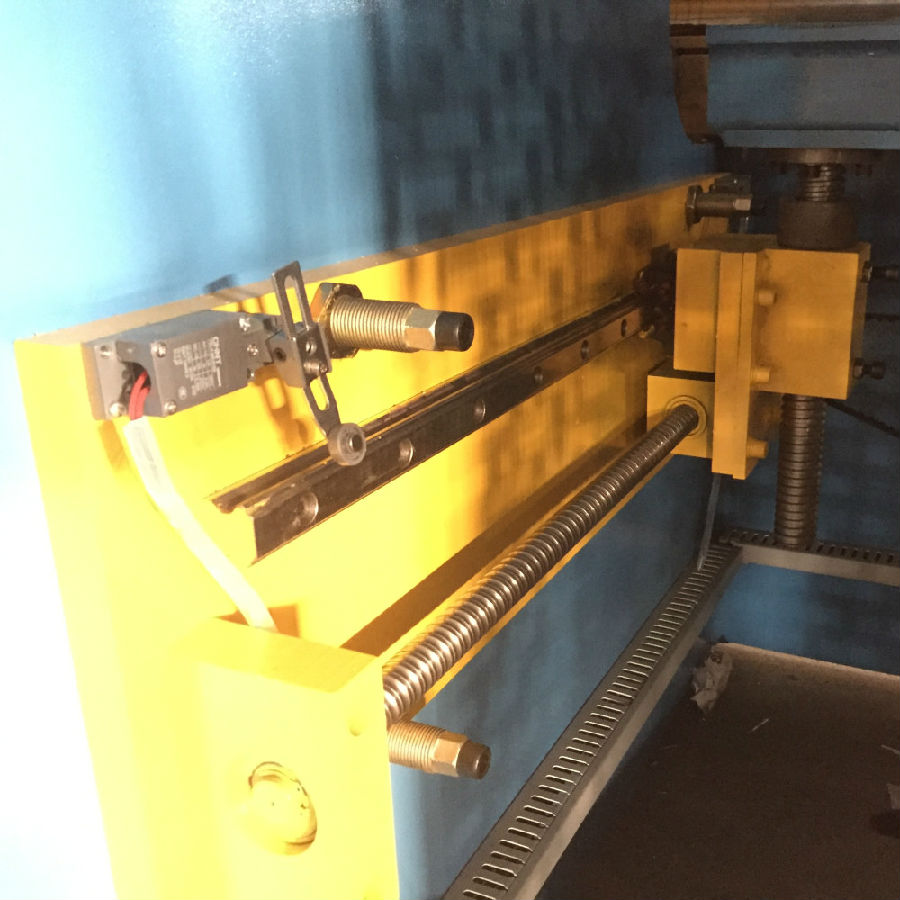

· Adopting HIWIN ball screw and linear guide rail, accuracy 0.05mm

· Front supporter bracket

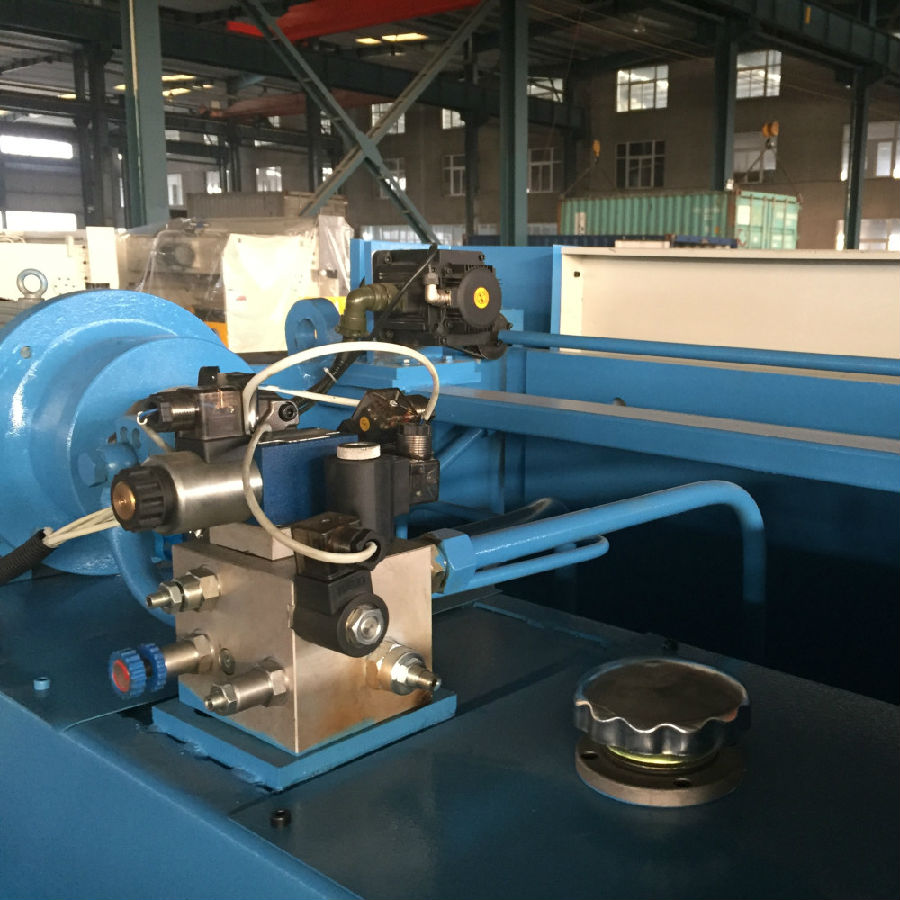

· German quality hydraulic valve block

· German quality  oil tube connector

· Germany Siemens main motor

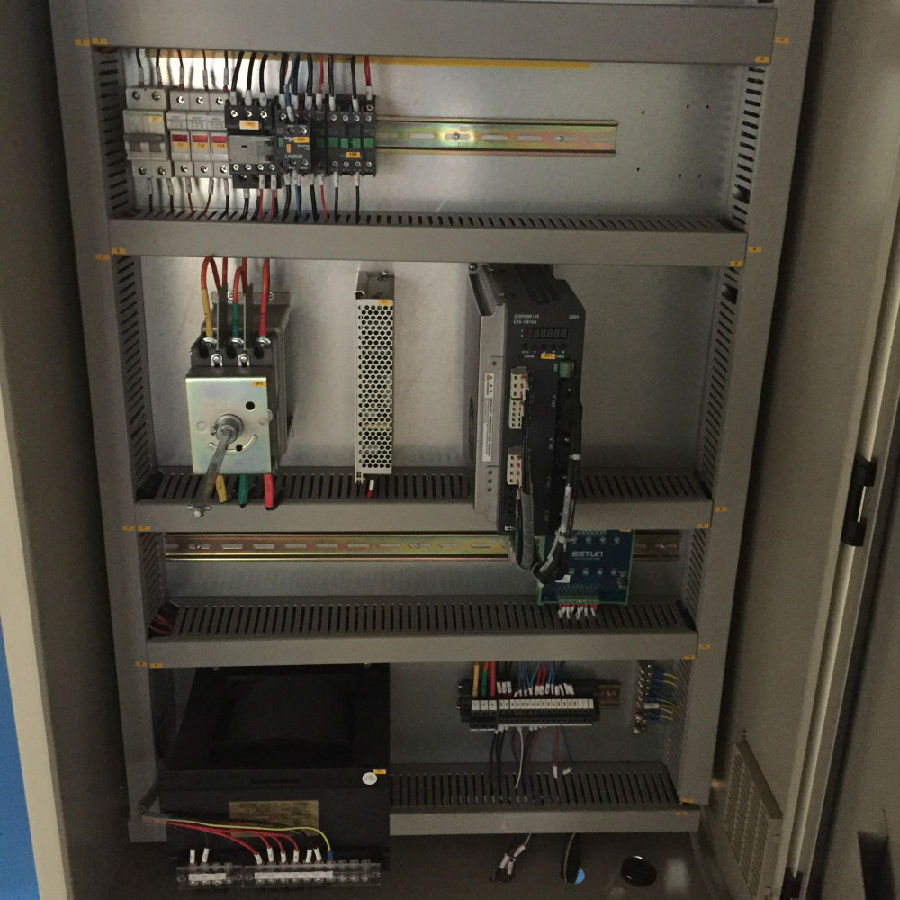

· France Schneider electrics

· Hydraulic & electrical overload protection

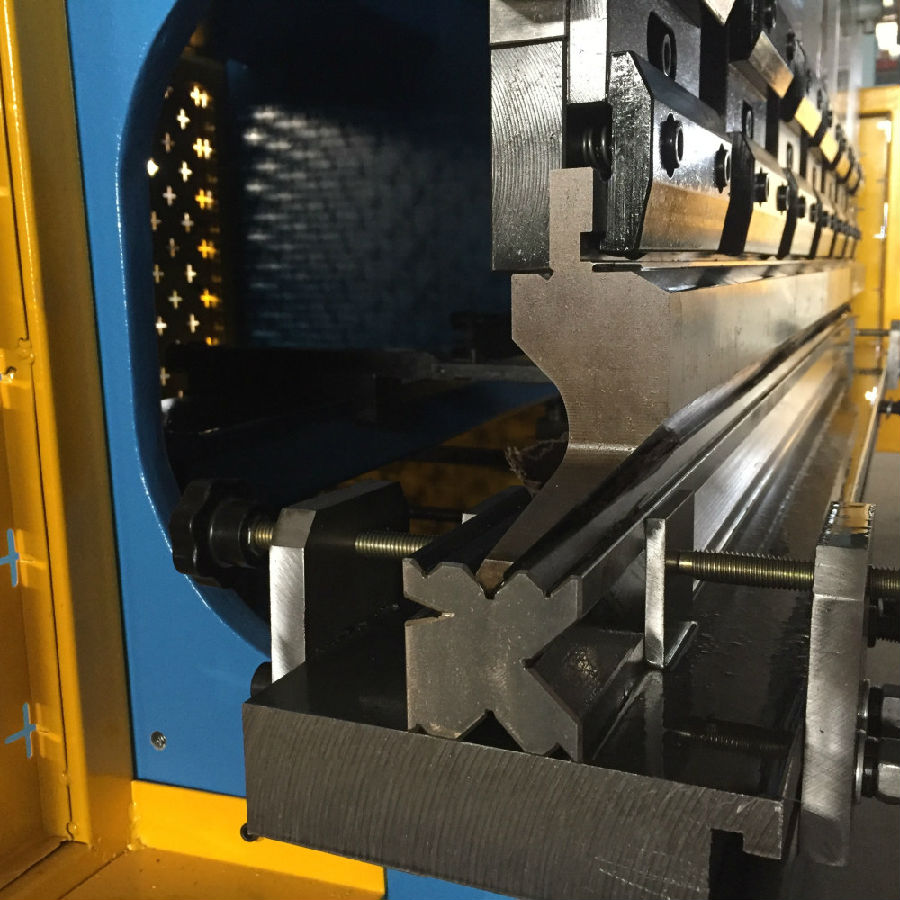

· Top and bottom dies (86 °, R0.6mm, material: 42CrMo HRC ±47 °)

· Ajdust quality stop finger

III. Safety Standard:

1.EN 12622:2009 + A1:2013          2.EN ISO 12100:2010      3.EN 60204-1:2006+A1:2009

· Front Finger protection ( safety light curtain )

· South Korea KACON pedal switch ( safety grade 4 )

· Back metal safeguard, CE standard

· Safety relay monitor pedal switch, safety protection

· Safety standard ( 2006／42／EC）

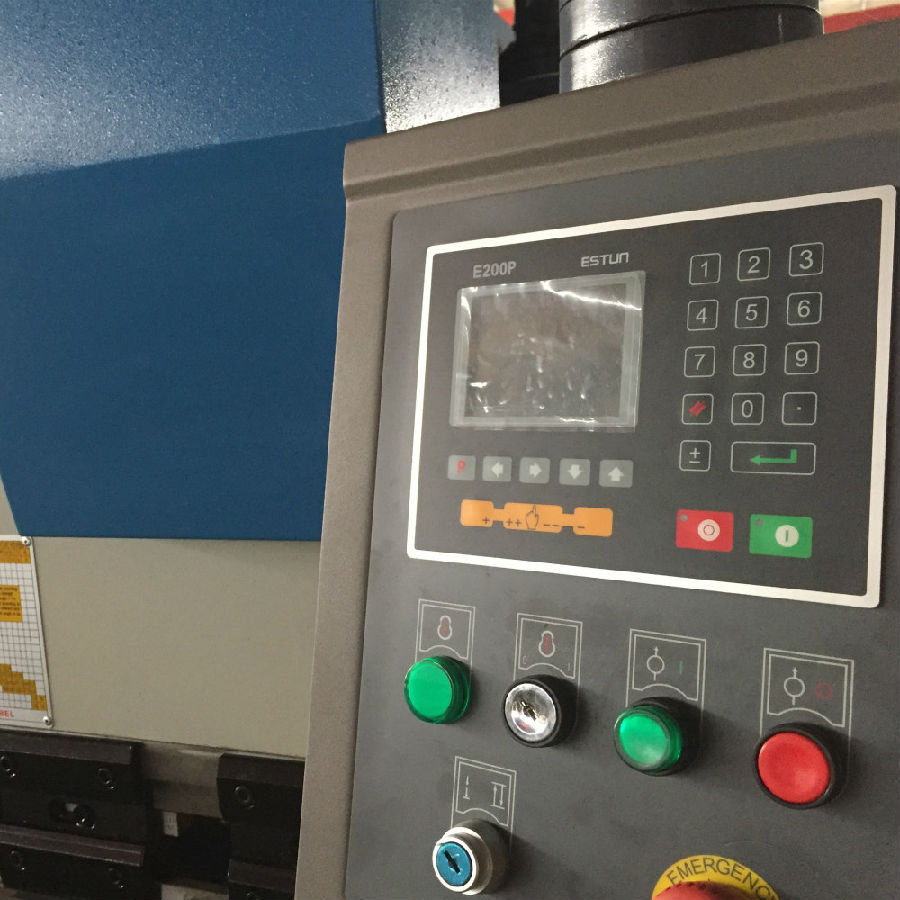

VI. Estun E200P CNC Controller

· High-definition LCD display

· Control slider stop position

· Backgauge control

· Servo control, can realize the backgauge and high accuracy of control block.

· Unilateral and bilateral location, to improve the positioning precision and reduce screw clearance.

· The main action of the machine can be configured, such as fast closing, pressing, decompression, opening.

· Backgauge can automatic homing.

· Backgauge can be adjusted through the manual keys.

· All ports can be configured directly on the device page, and the device has self-checking function.

· mm / inch

· Chinese / English
